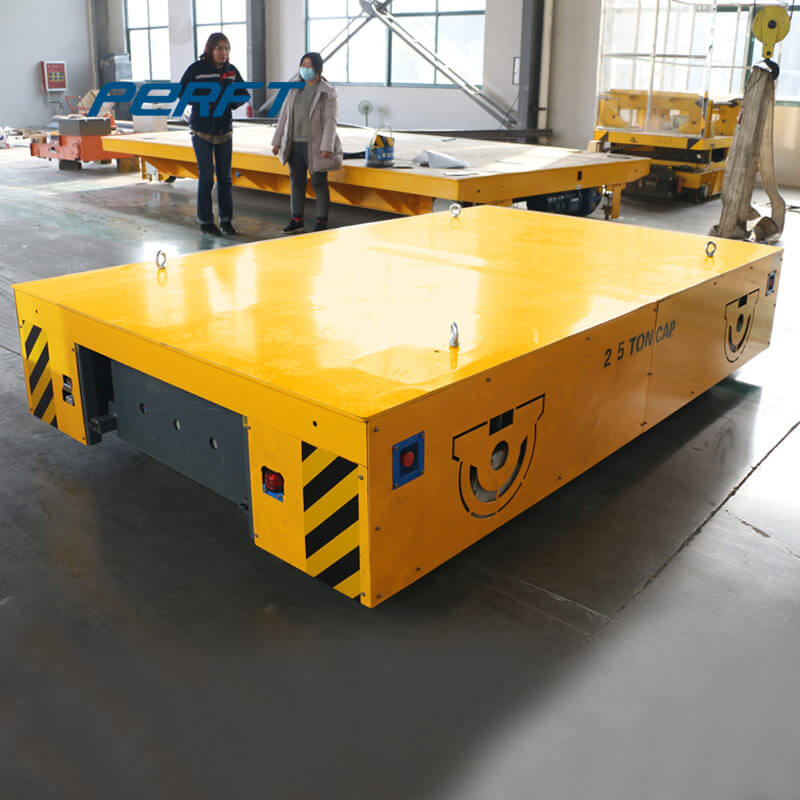

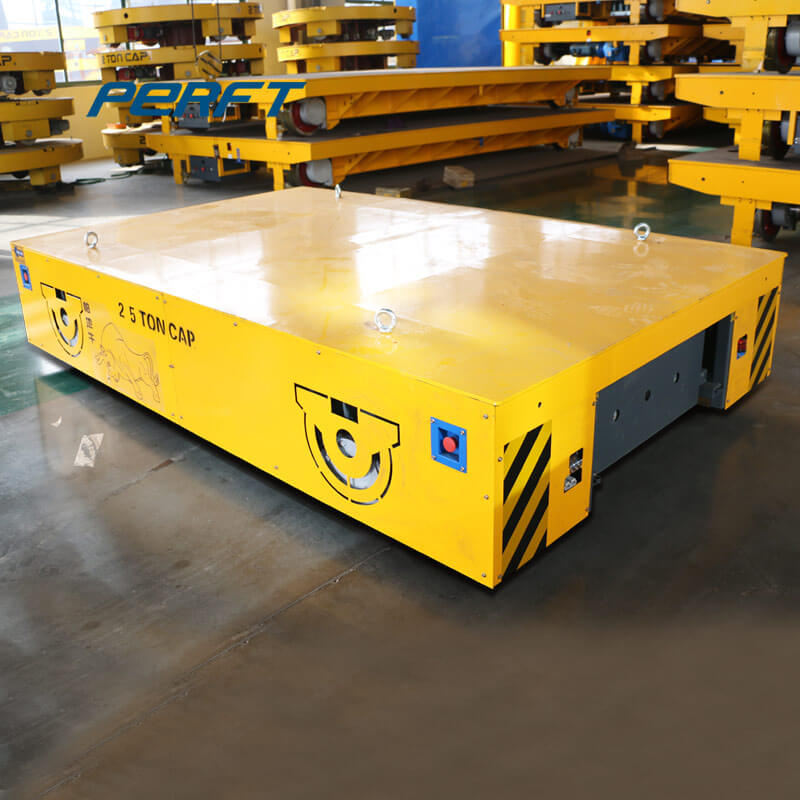

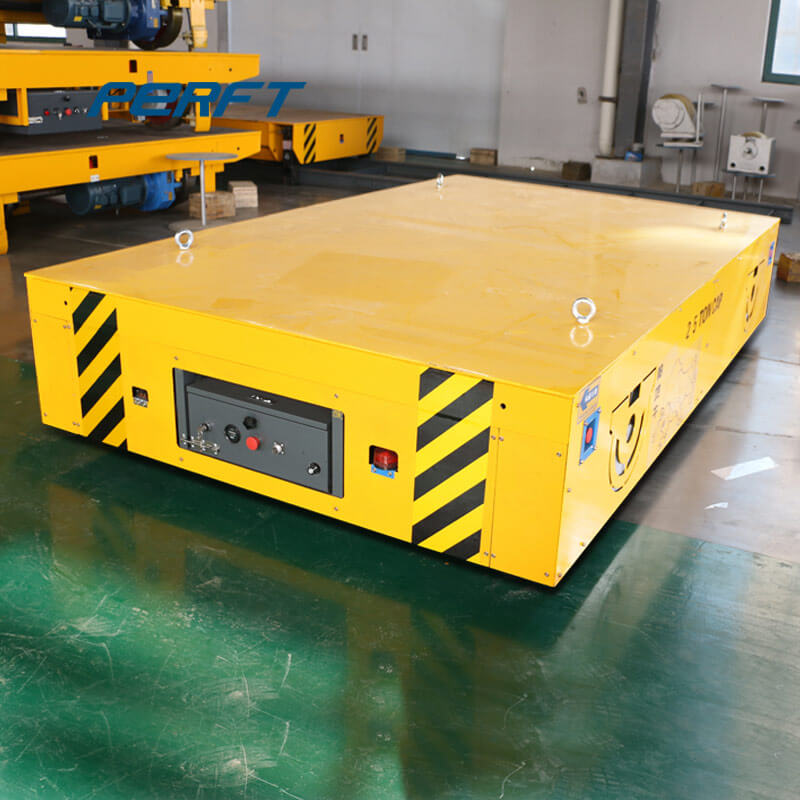

Lithium Battery Powered Industry Track Custom Transfer Cart

PERFECT’s lithium battery powered industry track custom transfer cart, also known as cross flat cart, transfer trolley,electric flat cart, have advantages as simple structure, easy operation ...
market@perfte.com
Inquire Now
Product Description:

PERFECT’s lithium battery powered industry track custom transfer cart, also known as cross flat cart, transfer trolley,electric flat cart, have advantages as simple structure, easy operation and maintenance,large load capacity and so on,with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across.The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant,painting room,shipbuilding,new factory building project,machine processing line,heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.

Application:

Uses of lithium battery powered industry track custom transfer cart:

Henan Perfect Handling Equipment Co., Ltd. is one professional designer and manufacturer of wide range of transfer cars, industrial trailers, die carts, lifting platform that are used in metallurgy, manufacture, oil and gas, die shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others.
The lithium battery powered industry track custom transfer cart is mounted on tracks, so you have to install the rails before using. They can meet the most important demands: where places are very limited and pathways are extremely constrained.
The lithium battery powered industry track custom transfer cart  have been created and built for their utmost extent working flexibility. Due to they have no predefined pathway and can steer in any direction and can run on any kind of floor the power-driven trolleys are very beneficial to bring the heavy duty where overhead cranes cannot reach best method for all those appliances with delicate handling issues in limited space.

Advantage:

For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.



Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100
